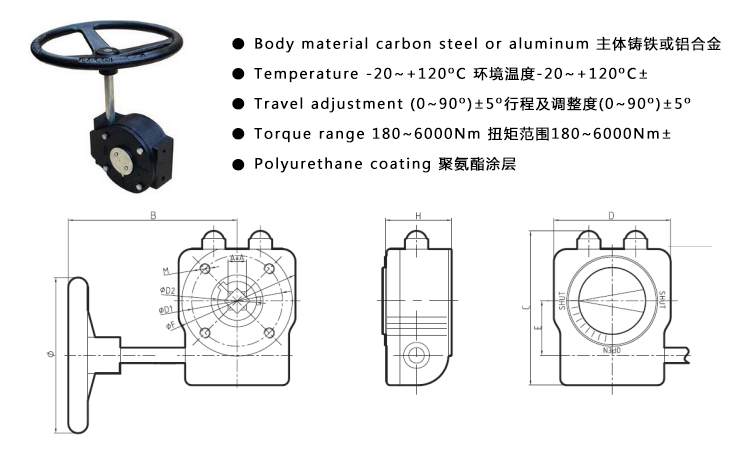

    Hand wheel gear box - HWG-M

    HWG-M  手动齿轮箱 Hand wheel gear box IP65

    产品简介：

    HWG-M系列手动齿轮箱适用于0~90º角行程球阀、蝶阀、旋塞阀的手动操作, ,依据ISO5211标准设计制造。


    Part No

    Output Torque-Nm

    Max A x A

    B

    C

    D

    E

    F

    H

    Φ

    ΦD1

    ΦD2

    4-M

    HWG-M-180

    180

    		1716012080408050140

    50/70

    		30

    M6/M8

    HWG-M-250

    250

    		171601201005010055200

    70

    		32

    M8

    HWG-M-550

    		550222051501206011555250

    70/102

    		42

    M8/M10

    HWG-M-700

    		750222051801406014070300

    102/125

    		42

    M10/M12

    HWG-M-1400

    		150036325225180801809540014050

    M16

    HWG-M-2000

    		200036375225180801809560014050

    M16

    HWG-M-3000

    		30004640027023010522010560016565

    M20

    HWG-M-6000

    		600046420330270130285125700

    165/254

    		80

    M16/M20
