Angle travel serials

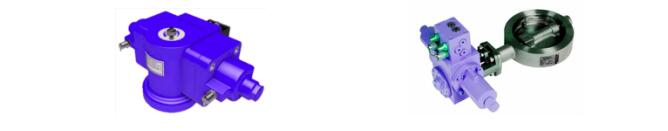

Hydraulic actuator-Rack (KHA)

KHA 双作用液压角行程执行器-齿条式

Double acting hydraulic actuator –Rack type

产品简介：

KHA系列的双作用液压执行器为齿轮齿条设计，是阀控系统中旋转阀门作0~90º开关的执行机构，具有扭矩大体积小，结构设计精密，使用寿命长等特点。扭矩从90Nm到22,000Nm

KHA series are based on the rack & pinion design, torque range from 90Nm to 22,000Nm.


Working pressure range	60 to 135 Bar
Rotation angle	0~90º
Closing direction (Top view)	Clockwise
Connection to the valves	ISO 5211, F05-F30
Working temperature	-20˚C to +80˚C
Optional for viton o-ring	-40˚C to +145˚C
Hydraulic oil	Viscosity ranges 15 to 200 etc. thermal environment
Surface finishing	Sandblast to S.A 2.5
Coating Color	Standard Blue （Other color selected by customer）
Coating thickness	Marine primer coated with marine epoxy paint at 200 um

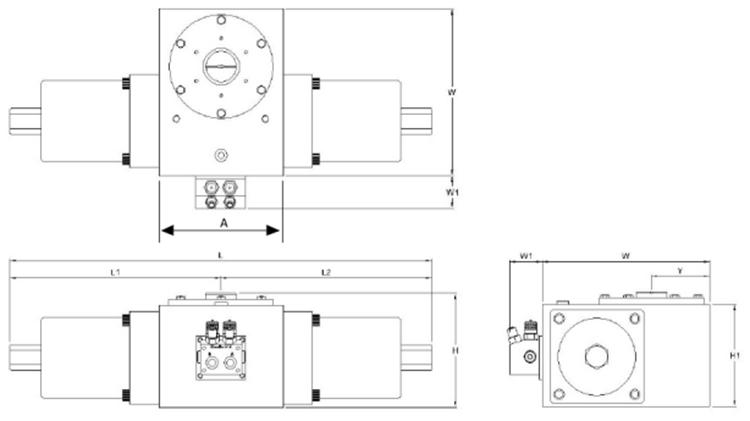

Dimension 外形尺寸图

Hydraulic Double Acting Actuator – KHD Series							Working Pressure 135 Bar
Model	Max	Stroke	Stroke	ISO 5211	Wt	A	W	H	L	Valve Shaft
Model	Torque	Length	Volume	ISO 5211	(kg)	A	W	H	L	Valve Shaft
KHA 90	90 Nm	27mm	13cm³	F5 & F7	11	100	135	116	250	Max █ 17
KHA 180	185Nm	29mm	28cm³	F7 & F10	13	100	135	116	260	Max █ 17
KHA 320	325Nm	50mm	48cm³	F7 & F10	15	110	145	120	374	Max █ 19
KHA 700	700Nm	51mm	100cm³	F7 & F10	20	110	145	120	390	Max █ 27
KHA 1400	1400Nm	76mm	215cm³	F14	75	160	210	180	515	Max █ 36
KHA 2700	2700Nm	86mm	395cm³	F12 & F14	85	200	240	190	590	Max █ 46
KHA 5400	5400Nm	110mm	780cm³	F16	290	280	400	235	710	Max █ 60
KHA 11000	11000Nm	142mm	1600cm³	F30	380	340	440	235	790	Max █ 75
KHA 22000	22000Nm	127mm	3340cm³	F30	440	340	440	235	800	Max █ 75

Note: Not shown for single acting type, please contact us if required
