Pneumatic actuator- (KPA)

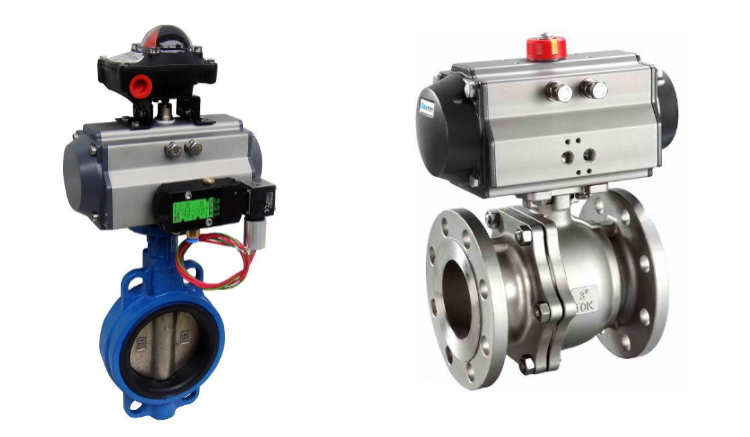

KPA-D 双作用气动执行器

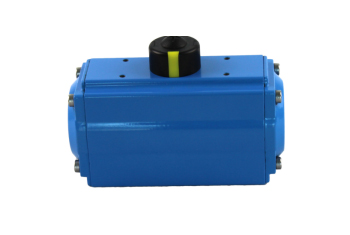

Double acting pneumatic actuator

产品简介：

KPA-D系列的双作用气动执行器，是阀控系统中旋转阀门作0~90º开关的执行机构,以压缩空气压力作为推力，扭矩从7Nm到8,000Nm

KPA-D series double acting pneumatic actuator, torque range from 7Nm to 8,000Nm.

Pressure range 压力范围： 2~8Bar Temperature range 温度范围: -20~80ºC Operating media工作介质: Filtered air过滤的压缩空气 Stroke range 行程：0~90º ±5 Coating 涂层:Hard anodized+ polyester coated 硬质氧化层+聚酯漆

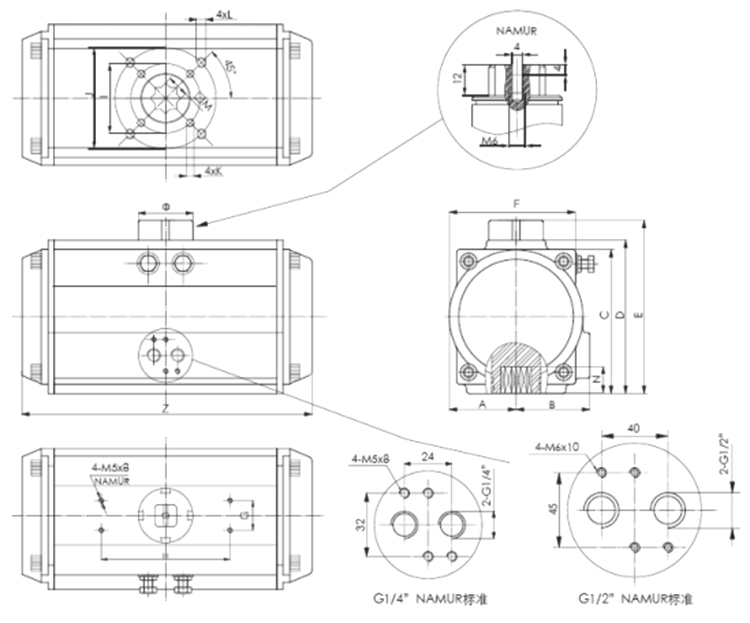

Dimension 外形尺寸图

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	Z	Φ	Port Thread -NAMUR
KPA-D007	23	23	45	50	65	45	30	80		36		M5x8	9	11	118	40	G 1/8"
KPA-D012	29	37	60	70	80	52	30	80	Φ36	Φ50	M5x8	M6x10	11	14	122	40	G 1/4"
KPA-D020	30	42	66	72	92	65	30	80	Φ36	Φ50	M5x8	M6x10	11	14	147	40	G 1/4"
KPA-D035	36	47	81	88	108	72	30	80	Φ50	Φ70	M6x10	M8x13	14	18	168	40	G 1/4"
KPA-D050	42	53	94	100	120	81	30	80	Φ50	Φ70	M6x10	M8x13	14	18	184	40	G 1/4"
KPA-D075	46	57	99	109	129	92	30	80	Φ50	Φ70	M6x10	M8x13	17	21	204	40	G 1/4"
KPA-D110	50	59	111	117	137	98	30	80	Φ50	Φ70	M6x10	M8x13	17	21	262	40	G 1/4"
KPA-D160	58	64	123	133	153	110	30	80	Φ70	Φ102	M8x13	M10x16	22	26	268	40	G 1/4"
KPA-D255	68	75	146	155	175	128	30	80	Φ70	Φ102	M8x13	M10x16	22	26	301	55	G 1/4"
KPA-D435	75	77	161	172	192	138	30	80	Φ102	Φ125	M10x16	M12x20	27	31	390	55	G 1/4"
KPA-D665	87	87	184	197	217	158	30	80	Φ102	Φ125	M10x16	M12x20	27	31	458	55	G 1/4"
KPA-D1000	103	103	213	230	260	189	30	130		Φ140		M16x25	36	40	525	80	G 1/4"
KPA-D1200	113	113	236	255	285	210	30	130		Φ140		M16x25	36	40	532	80	G 1/4"
KPA-D1800	130	130	265	289	319	243	30	130		Φ165		M20x25	46	50	602	80	G 1/4"
KPA-D2700	147	147	299	326	356	273	30	130		Φ165		M20x25	46	50	722	80	G 1/2"
KPA-D3800	162	162	348	348	378	324	30	130	Φ165	Φ215	M20x25	M20x25	46	60	742	80	G 1/2"
KPA-D5700	190	190	402	402	432	380	30	130	Φ165	Φ215	M20x25	M20x25	46	60	860	80	G 1/2"
KPA-D5700	258	258	464	464	494	398	30	130	Φ165	Φ254	M20x25	M16x25	55	55	924	80	G 1/2"

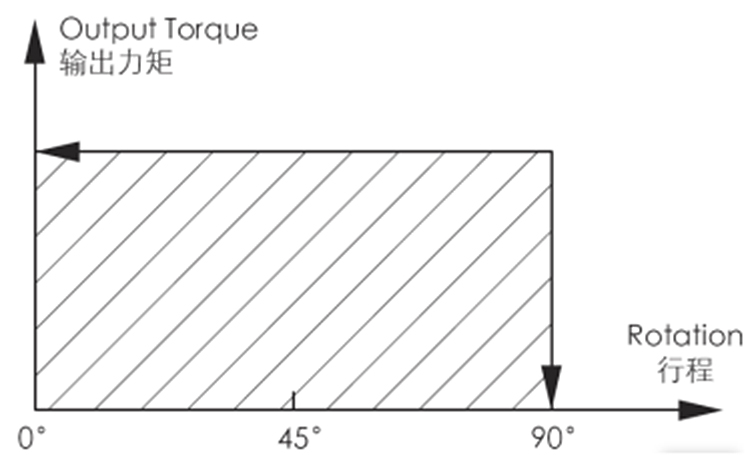

Output torque of double acting actuators 双作用气动执行器输出扭矩：

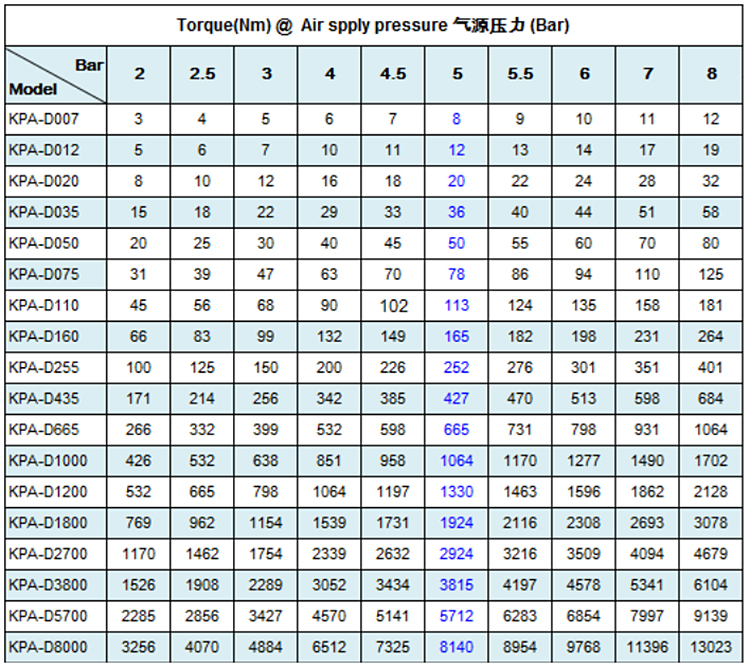

Torque table for double acting 双作用扭矩选型表:

Selection of double acting actuators:

The suggested safety factor for double acting actuators under normal working condition is 20%~30%, example:

● Torque of valve = 100Nm

● Torque of actuator = (1+30%)*100Nm=130Nm

● System pressure is 5Bar, then selected model is KPA-D160



双作用执行器选型：

一般情况下，双作用执行器安全系数为20%~30%，例如：

● 阀门扭矩 = 100Nm

● 执行器扭矩 = (1+30%)*100Nm=130Nm

● 如果系统压力为5Bar. 则选执行器型号为KPA-D160即可

Note: Not shown for single acting type, please contact us if required
