回转执行器-液压 KMH

KMH  液压多回转执行器

Hydraulic multi-turn actuator

产品简介：

KMH系列的液压多回转执行器，直接安装在闸阀和截止阀等阀门上，由液压马达与伞齿轮蜗轮蜗杆箱组成动力，进行阀门开关的液压多回转执行机构，具有运作平稳，扭矩大，噪音小，达到IP68防护等级，可以进行水下浸没安装，扭矩从150Nm到7,000Nm



KMH series Hydraulic multi-turn actuator, direct install on the gate valves and global valves etc, by using spiral bevel gear and thrust bearing, this type of actuator can run smoothly, and high output torque ,low noise and high reliable, can reach IP68.its torque range from 150Nm to 7,000Nm.



● Application用途: Vessel’s fore peak ballast tank inner side installed screw down valve etc船舶艏尖舱等

● Hydraulic pressure工作压力: 60~150Bar

● Hydraulic oil 液压油选用： 32~68#，（recommended推荐46# hydraulic oil）

● Output torque输出扭矩: 150Nm~7000Nm

● Output thrust输出推力: 50KN~900KN

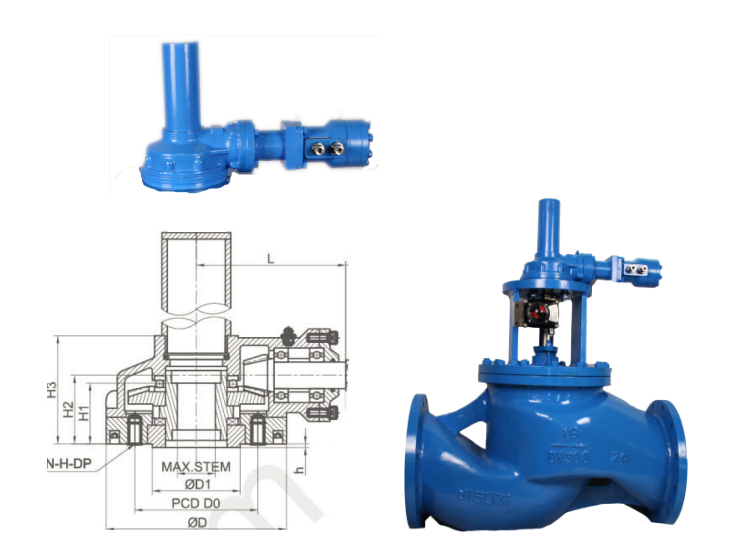

Dimension & Torque List 外形尺寸&扭矩表

Model	KMH300	KMH500	KMH1000	KMH1500	KMH2000	KMH3000	KMH4500	KMH7000
Max-thrust (KN)	90	135	180	250	280	380	550	900
Max-torque (Nm)	300	500	1000	15000	2000	3000	4500	7000
Max-stem (mm)	42	52	60	70	80	95	110	130
Flange	F12	F14	F16	F20	F25	F30	F35	F40
PCD- Do	125	140	165	205	254	298	356	406
N-H-DP	4-M12*18	4-M16*24	4-M20*30	8-M16*24	8-M16*24	8-M20*30	8-M30*45	8-M36*54
H1	45	70	75	90	100	120	150	180
H2	85	95	115	115	125	165	225	290
H3	110	125	140	140	155	190	250	320
L	155	170	180	200	225	280	355	365
Convex -D1xh	85x3	100x4	130x4	140x5	200x5	230x5	260x5	300x8
Weight-Kg	25	32	36	41	57	103	210	300

请联系我们，如需更多细节或要求
